11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

Name: 11 Spindle Glass Beveling Machine 06m6mmin With PLC Lifting Function
Brand: FOSHAN STAR
Price: 25100 USD

Model Number : ST 371 A - D

Max glass size : 3000*3000mm

MOQ : 1

Packaging Details : Protective Film

Bevel angle : 0°-25°

Price : 25100-26000USD/SET

Total dimension : 6680*1300*1900mm

Certification : CB,CE, RoHS, ISO9001

Min glass size : 80*80mm

Payment Terms : T/T

Glass thickness : 4-12mm

Delivery Time : 30 -45 working days

Brand Name : FOSHAN STAR

Name : Glass Beveling Machine

Place of Origin : CHINA

Weight : 4000KG

Contact Now

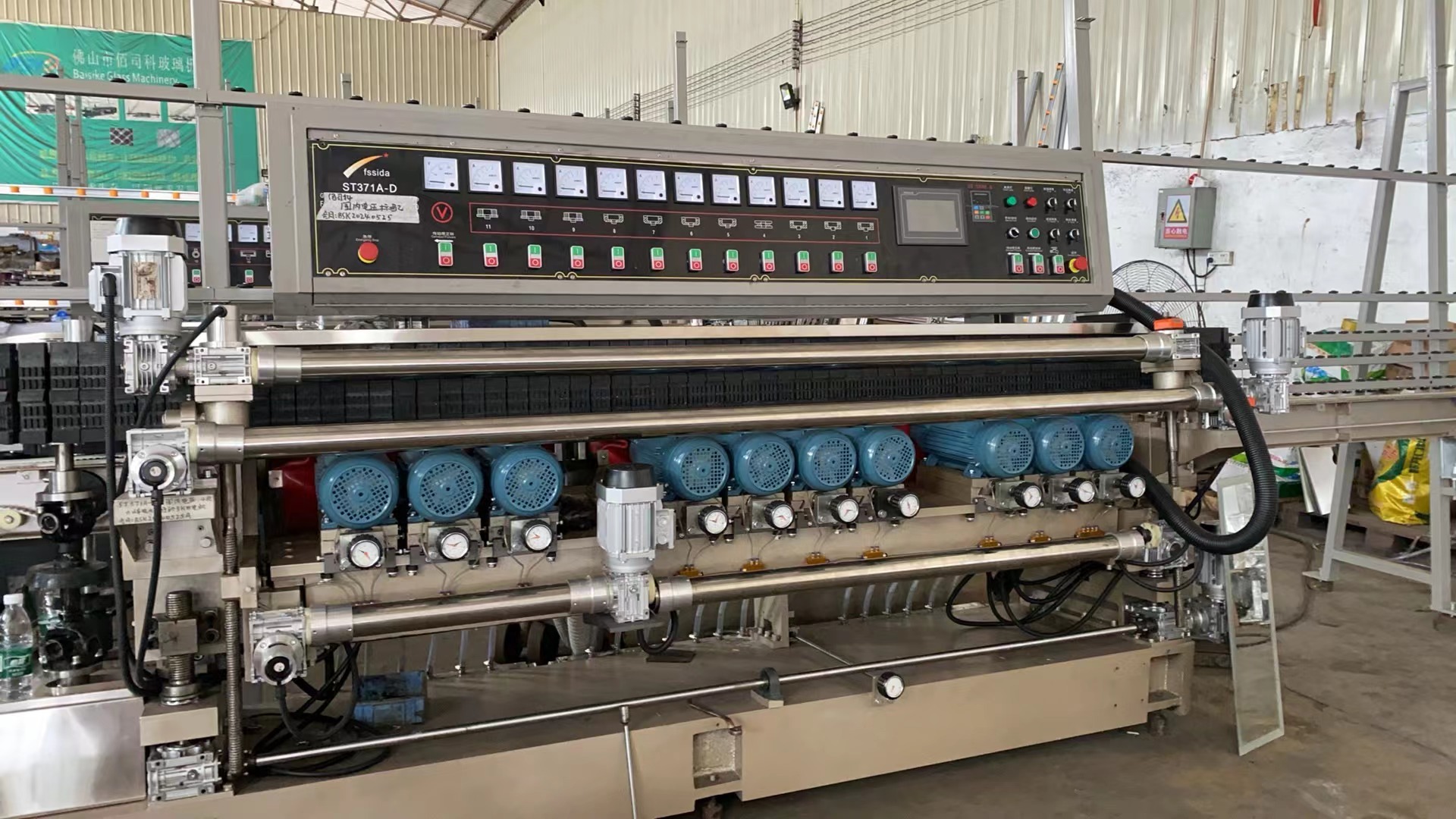

11-Spindle Glass Beveling Machine with PLC and Lifting Function

Product Overview

This 11-spindle glass beveling machine is professionally built for glass bevel-edge grinding and polishing. It adopts timing-belt conveying system and front-guide-rail lifting structure, supporting the machining of small-size glass workpieces with a minimum dimension of 25×25 mm.

Product Advantages

PLC control supports fast parameter setting. The front-guide-rail lifting structure enables simple adjustments, especially for small-size glass, for quick production changeover.
High-precision performance: bevel angle tolerance ±0.15°, edge straightness ≤0.08 mm/m, surface roughness Ra≤0.8 μm. It produces chip-free, uniform mirror-finish bevels even on tiny workpieces.

Technical Specifications

Spindles	11
Working speed	0.6m-6m/min
Max. bevel width	50mm
Min glass size	25×25mm
Max glass size	2000×3000mm
Glass thickness	3-12mm
Bevel angle	0° - 25°
Total power	25 KW
Total dimension	7100×1300×2600mm
Weight	5000 KG

Product Services

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function

Machine Images

11 Spindle Glass Beveling Machine 0.6m-6m/min With PLC / Lifting Function
